Architectural textiles up to a width of 320 cm/ 126 inches
Application areas

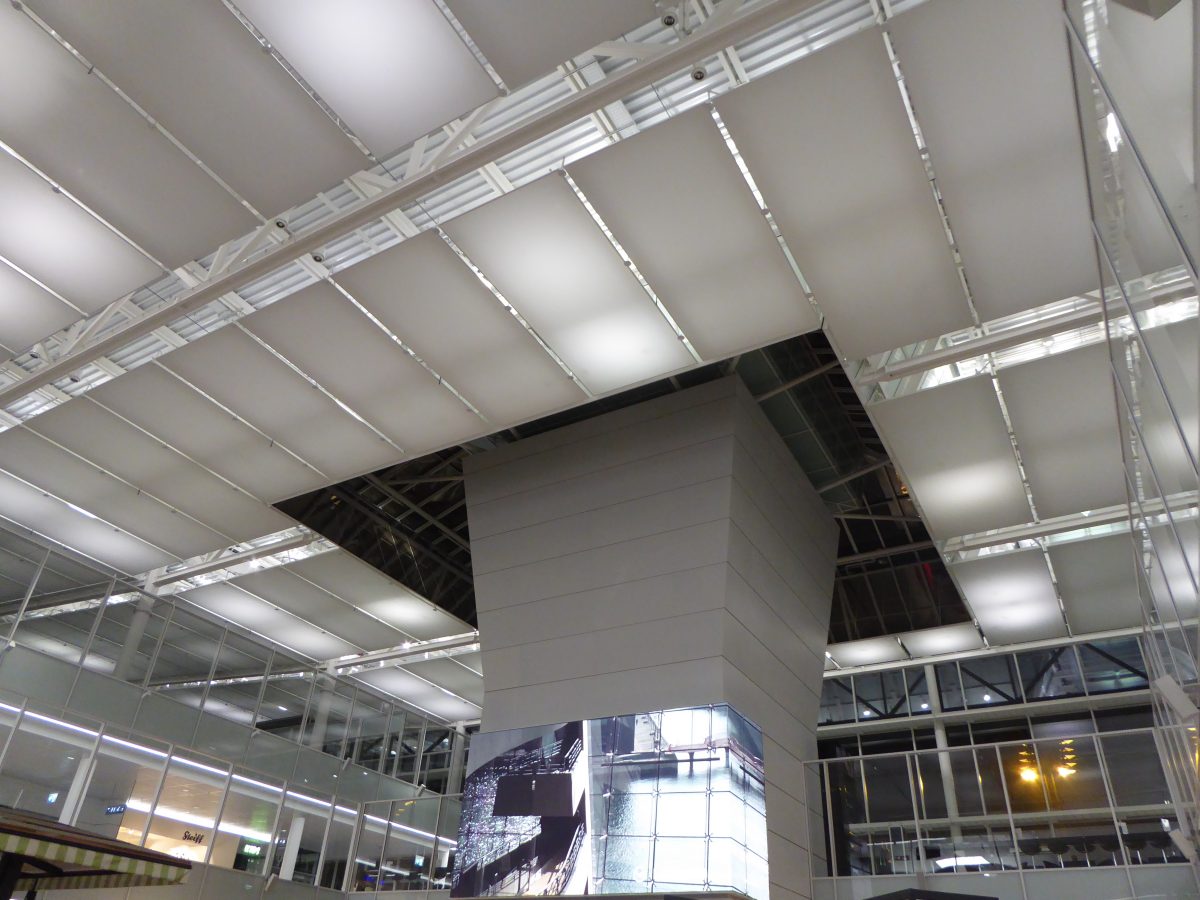

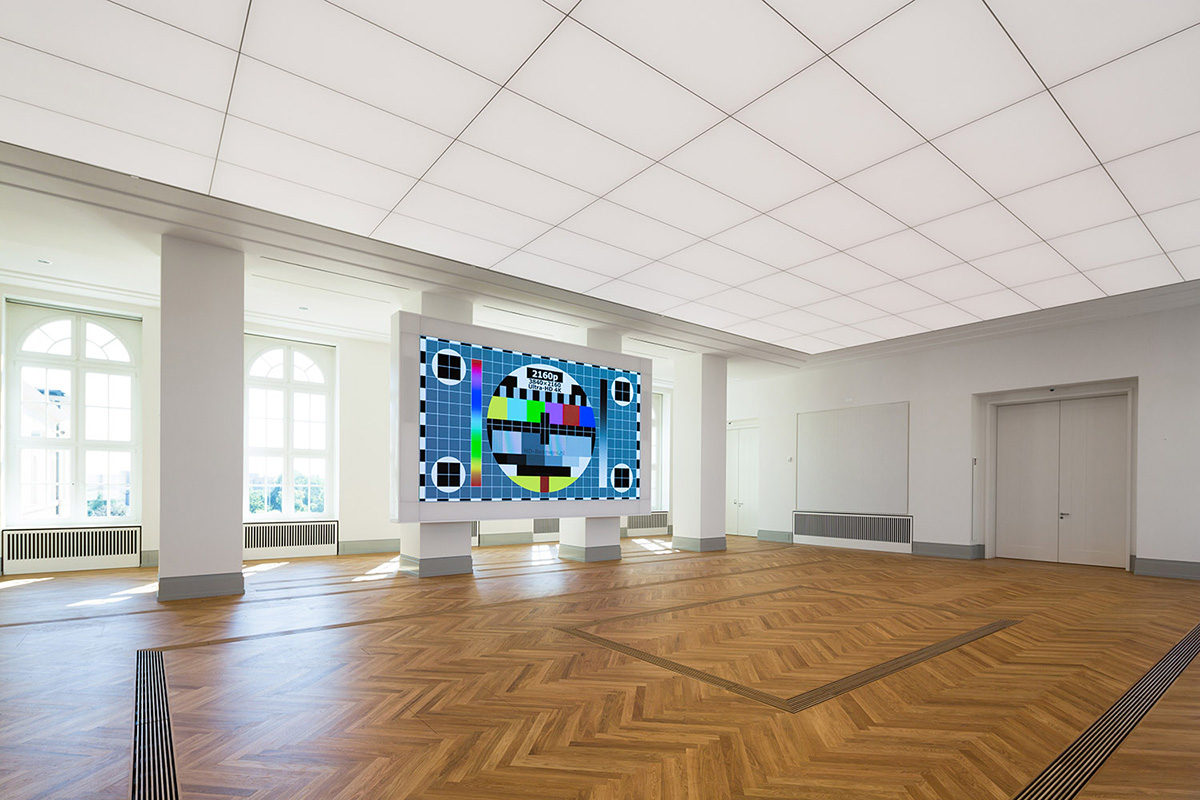

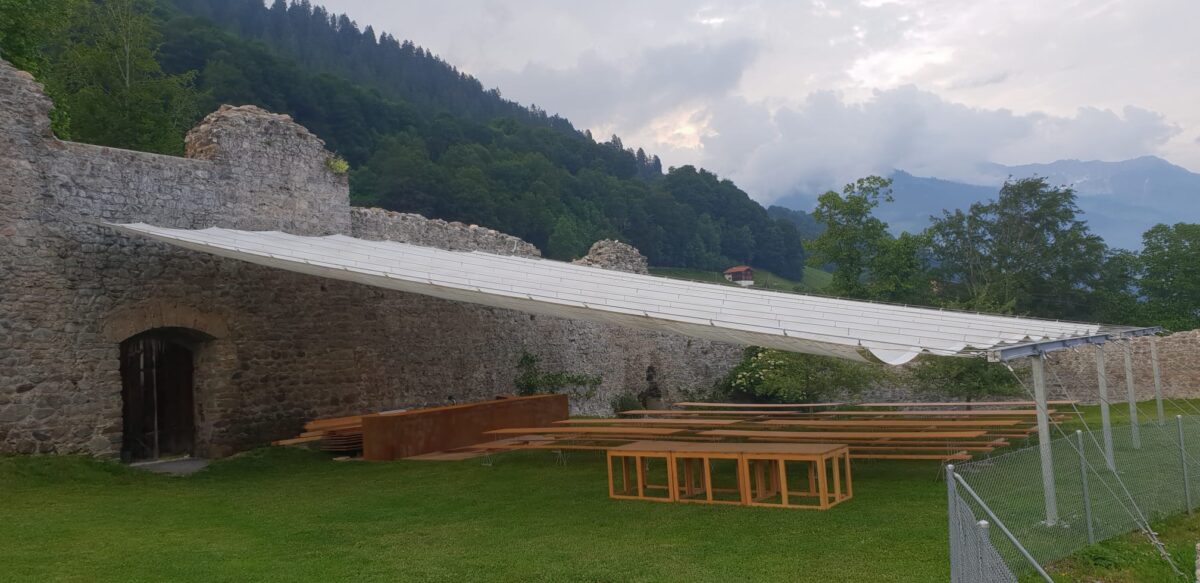

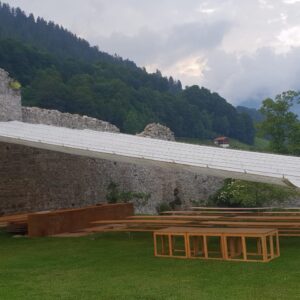

Light sails / Acoustic sails / Low-e fabrics / Theater – and Stage construction / Digital printing / Exhibition stands / Museums / Specialised Developments
Glass fibre fabrics according to DIN 4102-A2 and EN 13501-1, A2-s1,d0

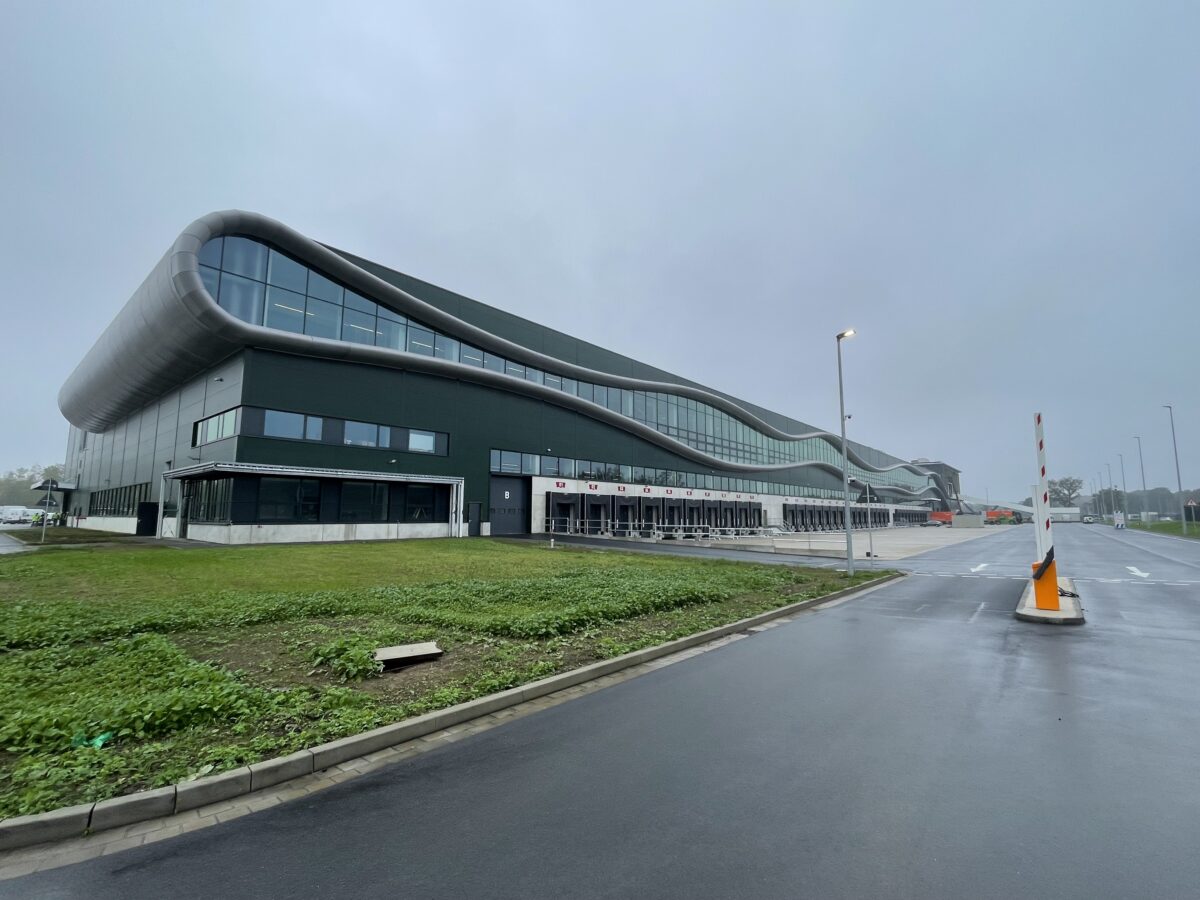

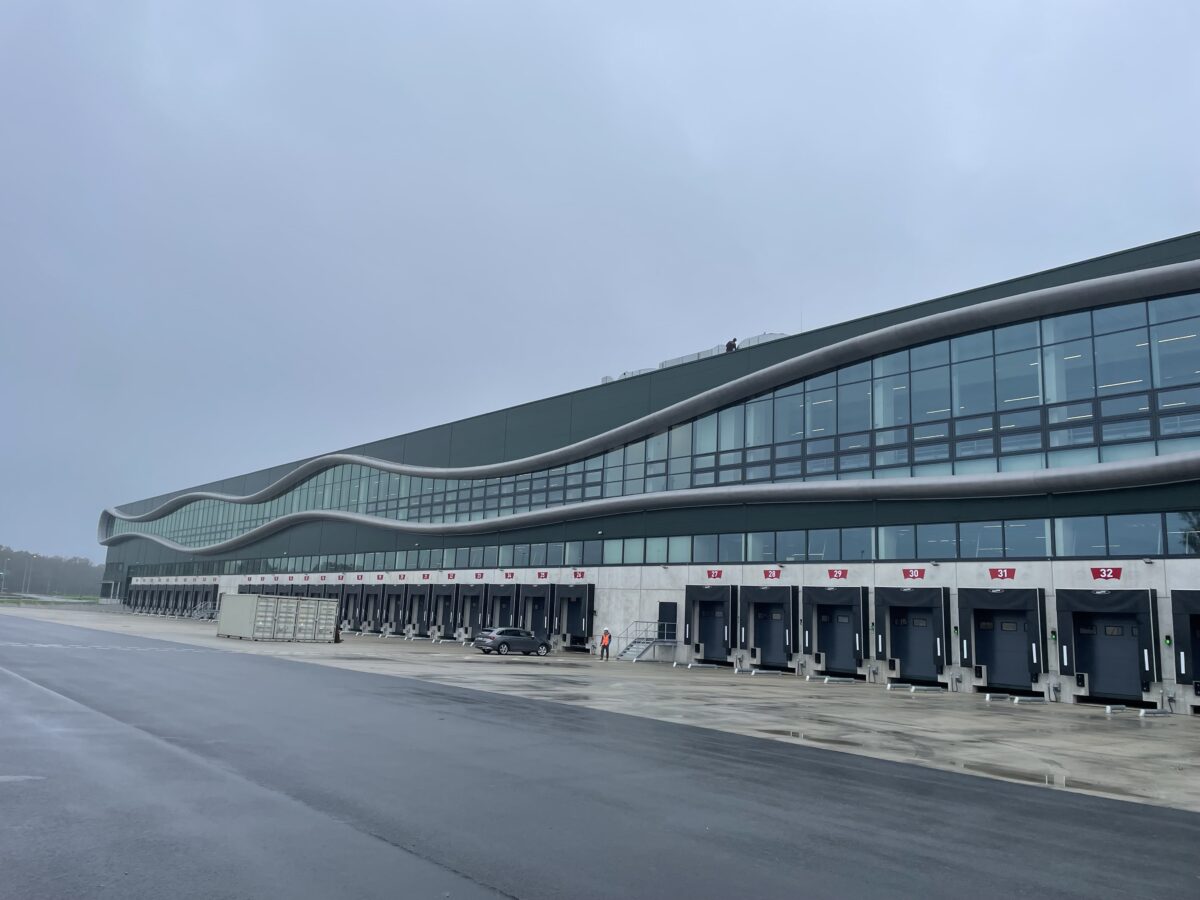

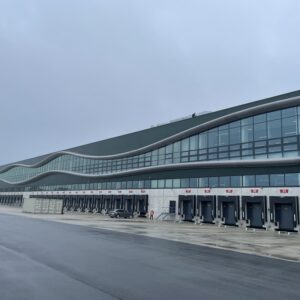

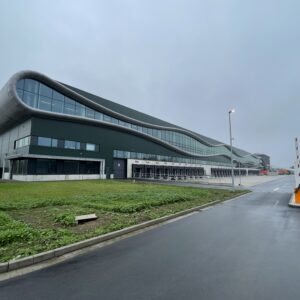

- PTFE-MESH Mesh fabric for façades
- GLASS SILICON A2 Full-surface fabric for indoor and outdoor use
- GLASS PREMIUM A2 Printable fabric for indoor and outdoor use
- GLASS 300 KK + 2 Acoustic fabric
- GLASS 320 WHITE Fabric for backlighting and printing
- BLACKOUT A2 Blackout fabric
- GLASS REFLECT Energy saving fabric (best low-e values)
Synthetic fabrics according to DIN 4102-B1 and EN 13501-1, B-s1,d0
- STRETCH 240 FR
- STRETCH 300 FR
- DECO STRETCH
- TENT PES + B1
Example of application – Football stadium Munich
Solar protection combined with acoustic resonating surfaces.
For the roof of the football stadium in Munich, Stottrop delivered glass fibre fabric which had to meet exceptionally high technical and quality standards. The light sails covering an area of 36000 m² are partially retractable. At the press of a button the solar screens can be retracted or extended to ensure that during the times that the ground is not being played on, the grass surface receives sufficient sun light to be able to grow.
In addition the light sails improve the acoustic properties within the arena for the benefit of the spectators. To achieve the requirements on light and acoustic properties demanded by the Architects Herzog & de Meuron (Basel), Stottrop Textil worked in close co-operation with dedicated light and acoustic institutes.
The fabric had to meet the following defined standards:
- The material for the light sails as an incombustible, grey, woven fabrics according to the fire classification DIN 4102 – A2.
- Measured values for solar radiation:
- Reflection min. 55 %, Transmission max. 40 %, Absorption max. 5 %
